1. Portion
2. Form
3. Lighter
4. Pasta de vedação
5. Cadinho Descartável
O Kit com CLV é composto por 6 itens:
1. Portion
2. Form
3. Lighter
4. Pasta de vedação
5. Bujão
6. Cadinho Long Life
CD x CLV

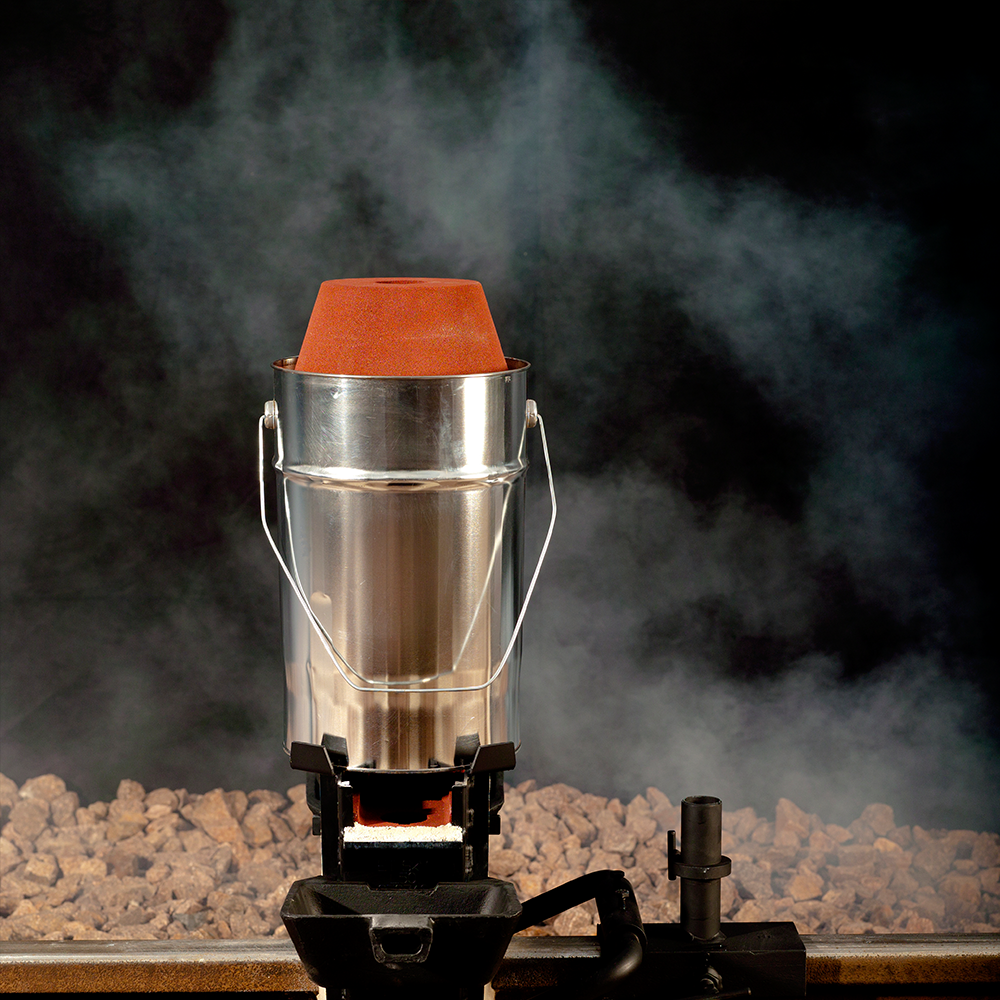

The use of the Disposable Cadinho directly competes for a lesser participation of the welder in the process of execution of the weld, since it discards the needs of:

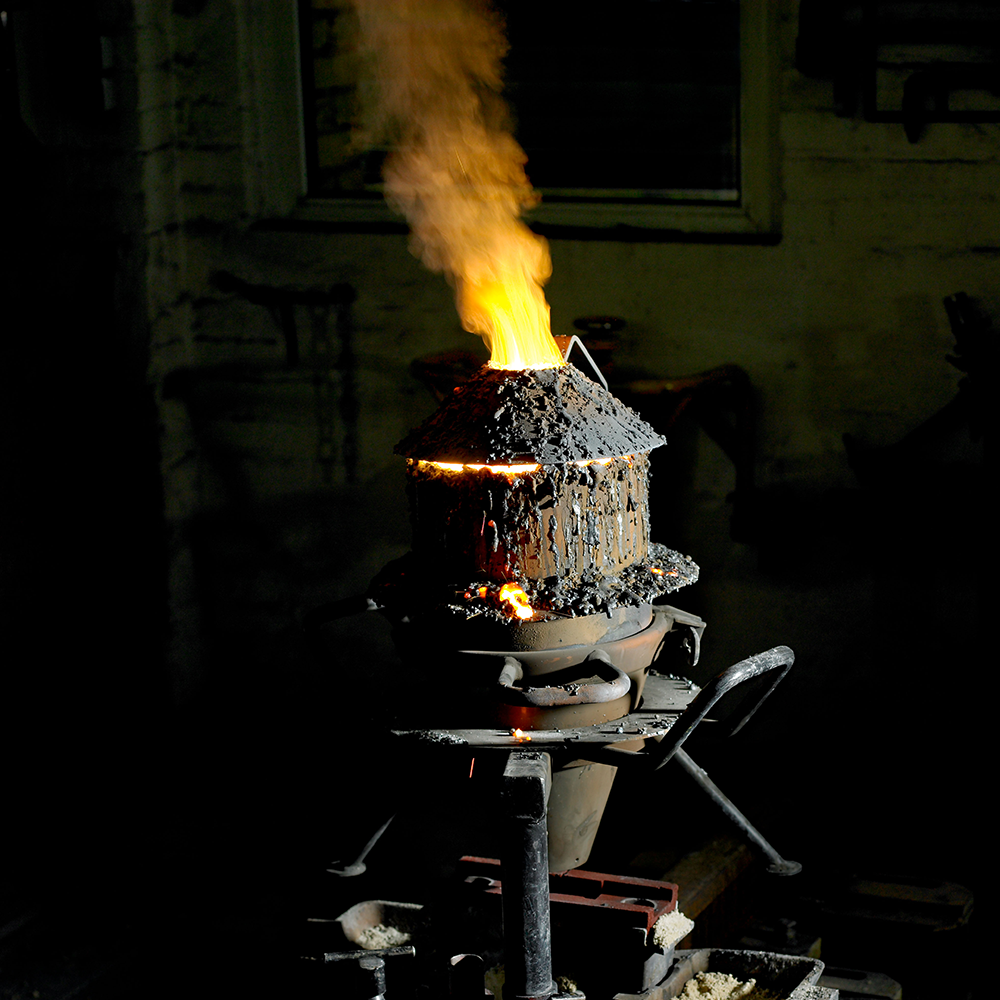

1) Assembly of Bujão Automátic (what is needed in the Cadinho Long Life which is one of the most common human faults in the welding process),
2) Preheating the same;
3) Além da necessidade de realizar uma limpeza após cada ciclo de soldas executadas.
It should be considered still in the soldering process with the Disposable Cadinho I do not use tools like: Fixing ring, extension for crucible, cover, holder, mounting rod and extractor
With the use of Disposable Cadinho, the assembly of the same occurs directly on the clips, thus not implying manual centralization, mandatory in the use of CLV. Another relevant fact is the fact that Disposable Cadinho it weighs approximately 7,90 Kg while the net weight of the CLV is approximately 18 Kg(without considering the accessories that make it up) reason why, the use of the CD gives the welder less physical wear and tear, which in some ways may contribute to higher productivity.
